Plano 2.0 Space
Category
Color
- Black RAL 9005, White RAL 9016, On request

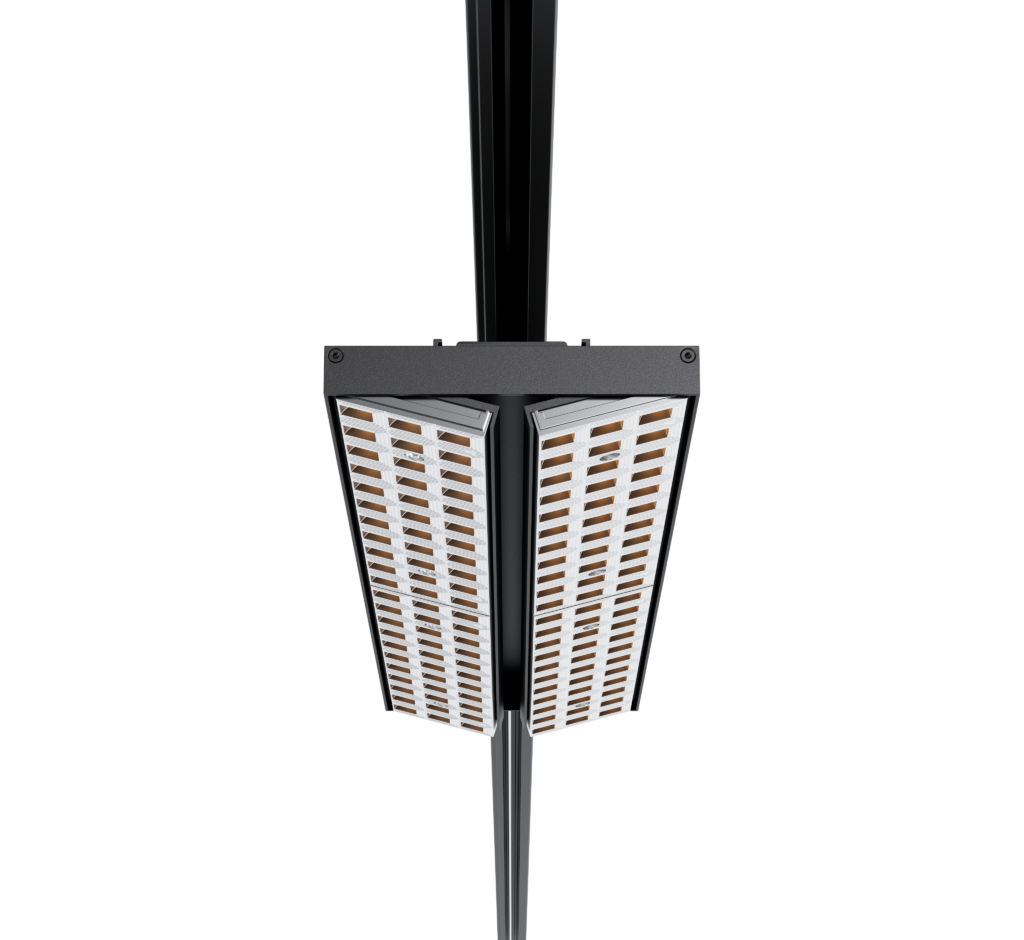

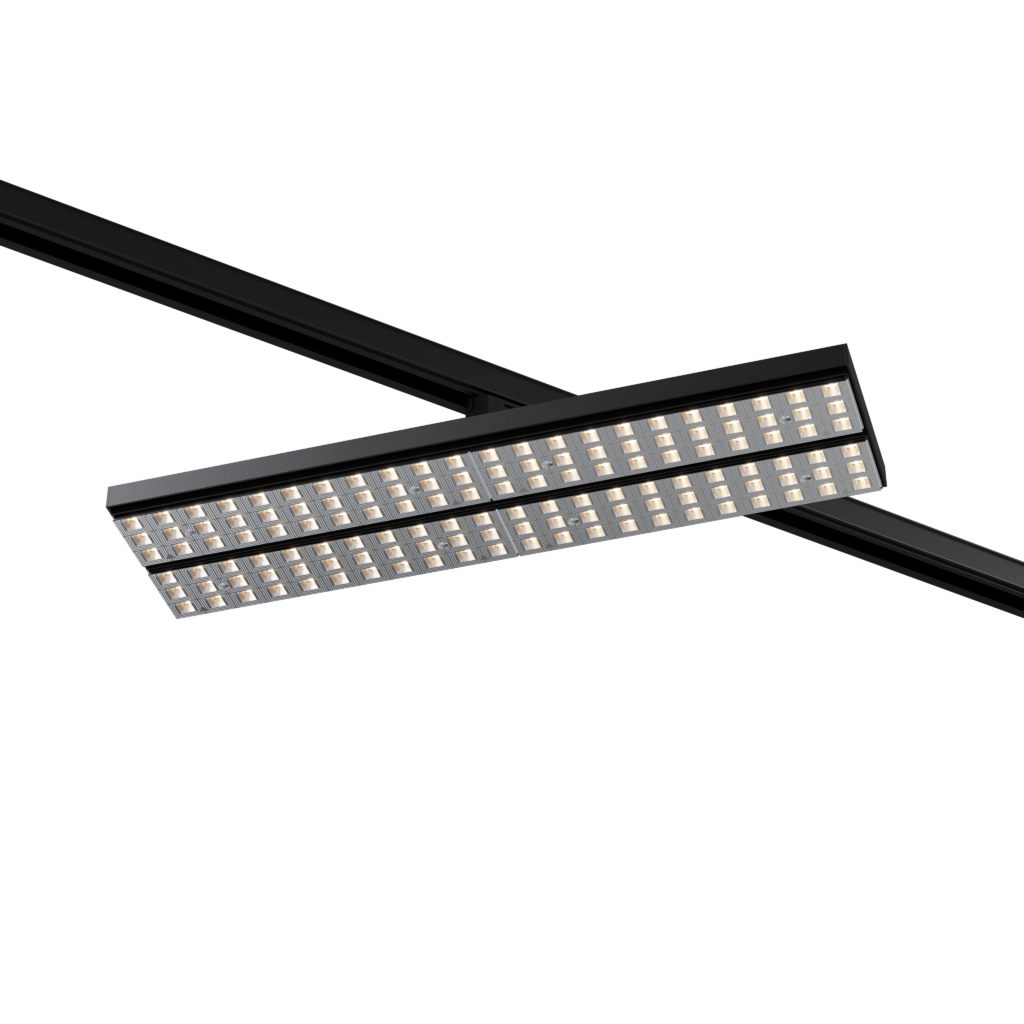

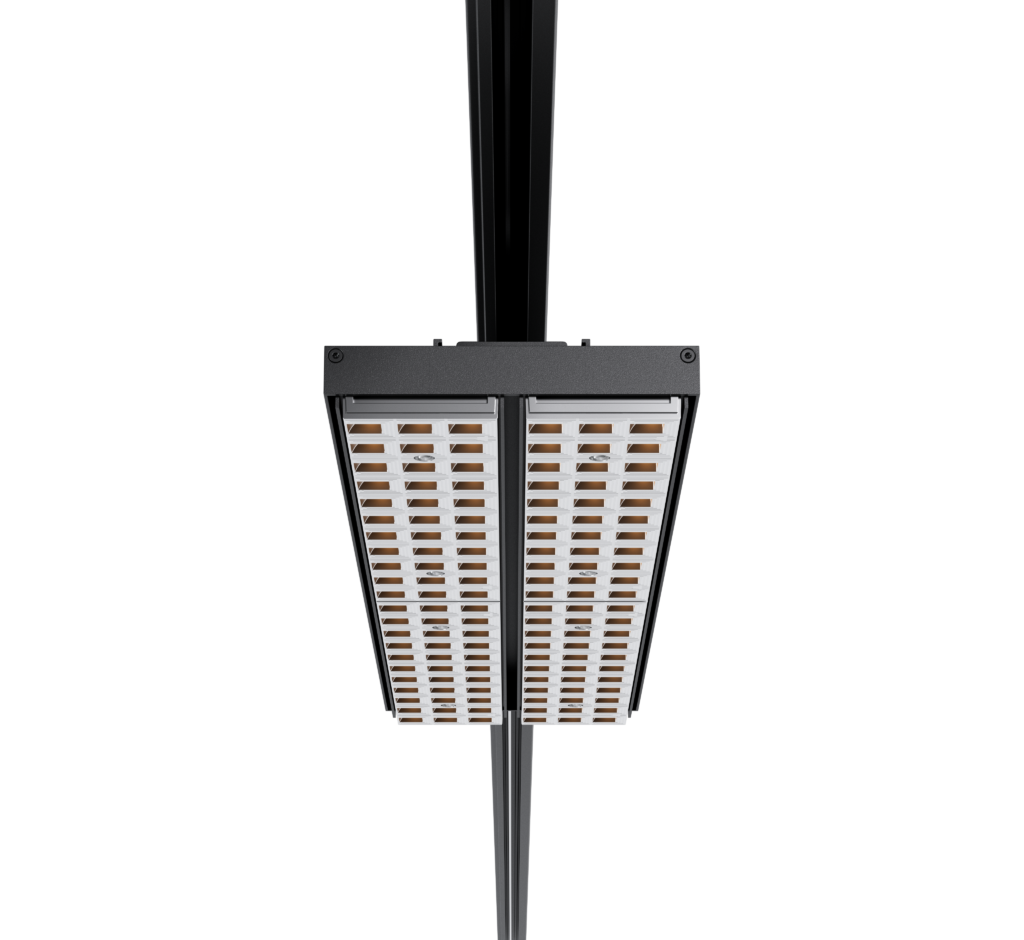

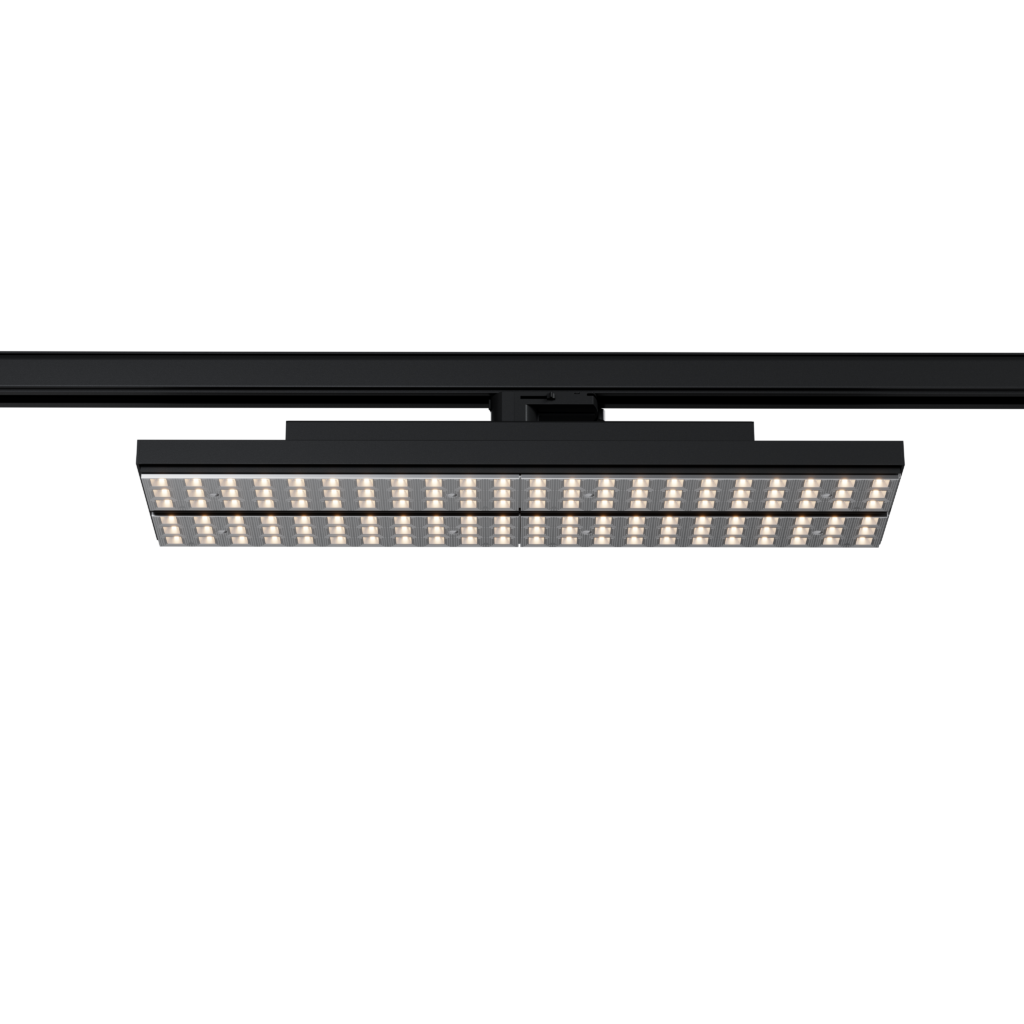

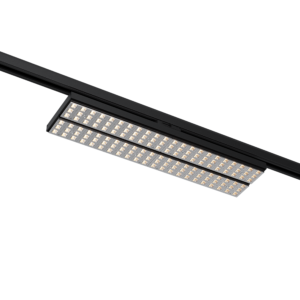

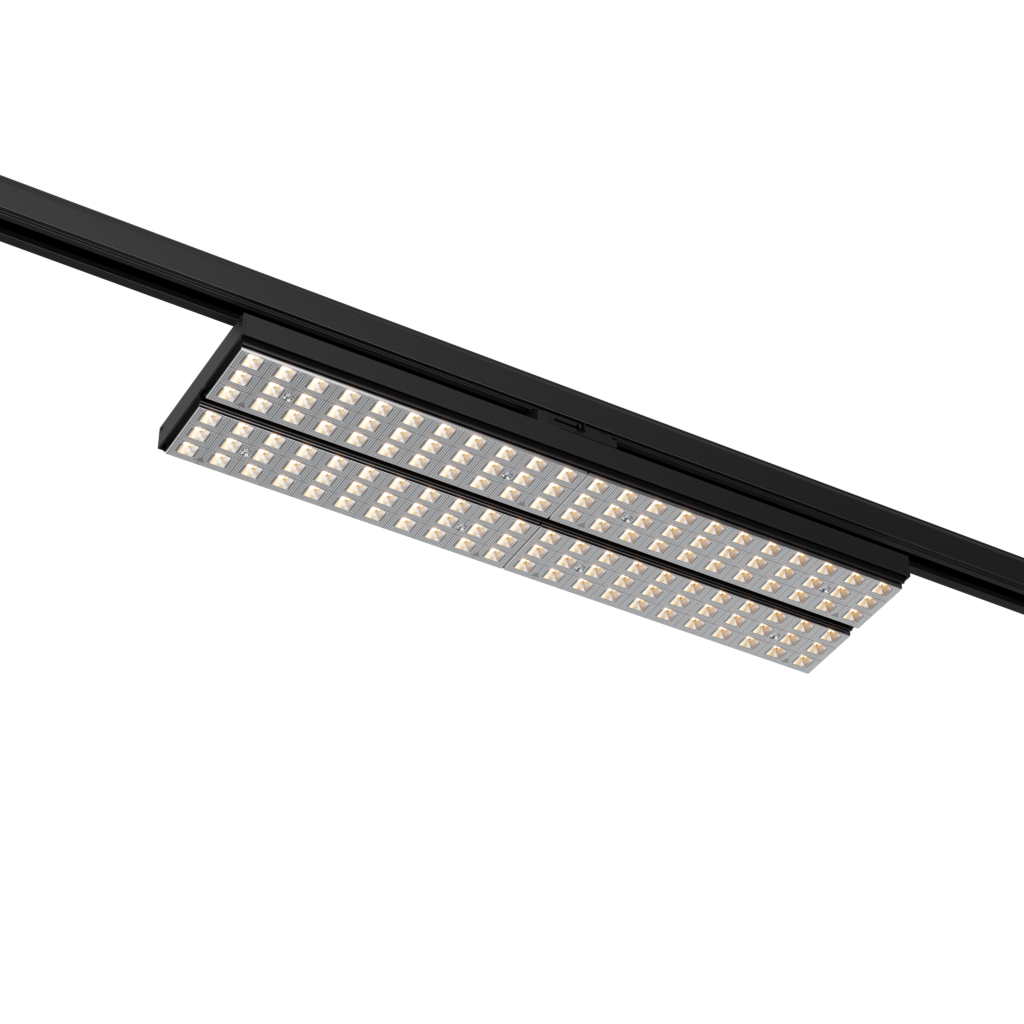

The Plano 2.0 Space is a track-mounted linear luminaire designed for flexible professional lighting. It features high-precision reflector optics that provide focused light and enhanced visual comfort with UGR < 17.
The fixture’s key advantage is its versatility: it can combine different types of optics within a single housing and allows for 350° horizontal rotation and 90° vertical tilt. This enables precise light direction for various retail tasks, including illuminating parallel shelves. High energy efficiency allows for a reduction in the total number of luminaires per project.
Application area
Professional lighting for retail chains, supermarkets, shopping malls, and showrooms. Specifically designed for general and accent lighting of high-ceiling commercial environments and parallel shelving systems.
Specification
- Luminaire type Line
- Application areas General and accent lighting
- Light colour 3000K, 3500K, 4000K
- CRI Ra > 80, Ra > 90
- Pan/tite range 350° / 90°
- Protection rating IP21
- Beam angle 90°, AS30NX90, DS30NX90, DS29NX90
- Certificates CE, UKCA, UA
- Life time 50 000 hours
- Warranty 5 years/ 50 000 hours
Materials
- Body Steel
- Body colour Black RAL 9005, White RAL 9016, On request
- Optical element PC
- Weight 2.6 kg
- Connection 3f adapter
Electrical equipment
- Power supply Integrated LED driver
- Lighting technology LED SMD 2835
- Input voltage 230 V, 50 Hz
- Power factor 0.95
- Cooling Passive
Mounting type
- Mounting 3-phase track (3PH)
